Plot an Object of Class cs_anchor_group_within — plot.cs_anchor_group

This function creates a generic group level clinical significance plot by plotting the within group change with the associated uncertainty interval around the estimated change on the y-axis.

Usage

# S3 method for class 'cs_anchor_group_within'
plot(
  x,
  x_lab = "Group",
  y_lab = "Mean Intervention Effect\n(with 95%-CI)",
  ...
)

Arguments

x: An object of class cs_anchor_group_within
x_lab: String, x axis label. Defaults to "Group"
y_lab: String, y axis label, defaults to "Mean Intervention Effect (with 95%-CI)"
...: Additional arguments

Value

A ggplot2 plot

Examples

cs_results <- antidepressants |>
  cs_anchor(
    patient,
    measurement,
    mom_di,
    mid_improvement = 8,
    target = "group",
    group = condition
  )
#> ℹ Your "Before" was set as pre measurement and and your "After" as post.
#> • If that is not correct, please specify the pre measurement with the argument
#>   "pre".


# Plot the results "as is"

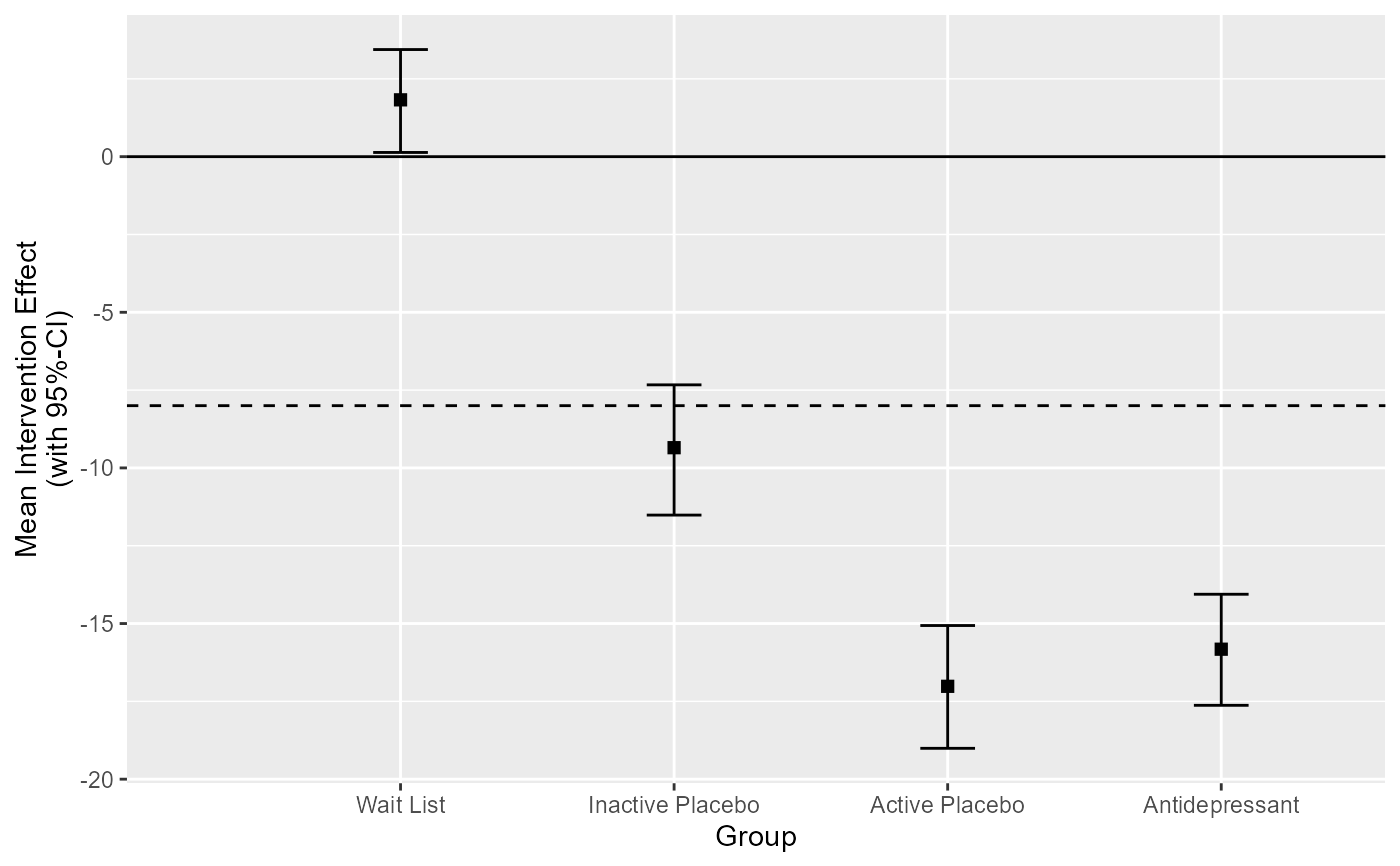

plot(cs_results)



# Change the axis labels

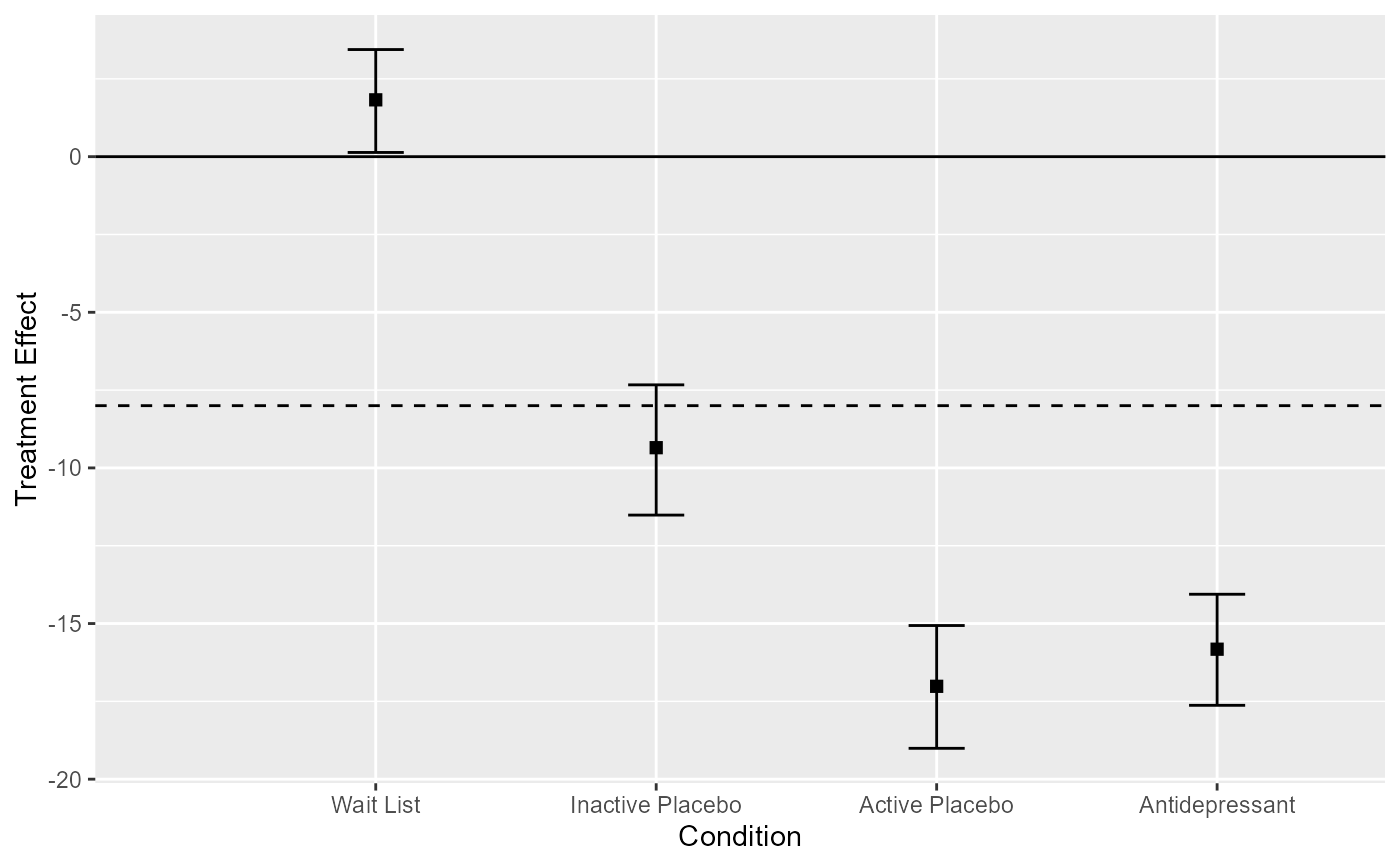

plot(cs_results, x_lab = "Condition", y_lab = "Treatment Effect")
